Product Description

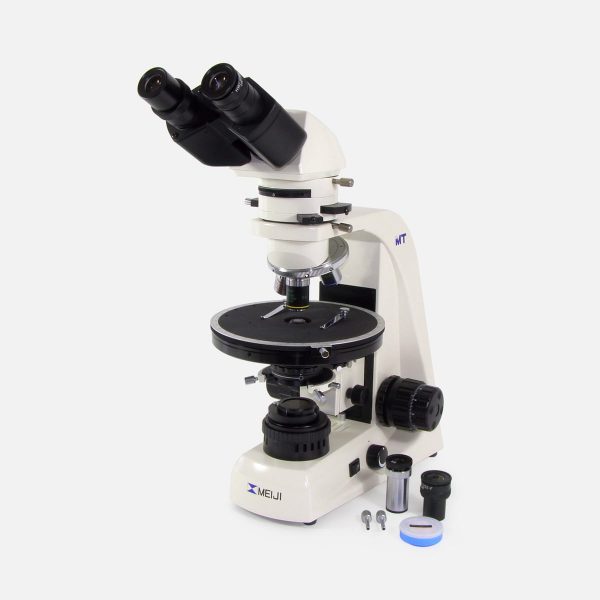

Meiji Techno offers the MT6800 Series Combo PLM – PCM (Polarized Light and Phase Contrast) Microscopes for Asbestos fiber identification applications. Meiji Techno manufactures these microscopes pursuant to NIOSH 9002 Reference methods and NIOSH 7400 and OSHA ID 160 Reference methods. These models use the phase contrast method for dispersion staining. Each model comes with Strain free Plan DIN brightfield POL objectives, rotatable stage with 360 degree graduations, POL/PHASE/Dispersion Staining Abbe condenser and built-in Koehler illuminator as standard equipment. The table below shows the features of each model.

Viewing Heads

Model MA952 is the Siedentopf-type binocular head and Model MA953 is the trinocular head for camera integration. Each head has the 23.2mm eyetubes inclined at 30 degrees with the left eyetube having graduated diopter settings.

The interpupillary distance is adjustable between 53mm – 75mm. An 80/20 beamsplitter for the trinocular tube can be engaged for photo work.

Each head has the new integrated reticle angle compensation system. When the IP distance or number is changed, the crossline reticle remains perpendicular in the FOV.

Eyepieces

10X Widefield High Eyepoint eyepiece F.N. 20, 10X Widefield High Eyepoint focusable eyepiece that has a 21mm crossline reticule and guide pin, and 10X Widefield High Eyepoint Compensating Focusing eyepiece, F.N. 20 with Walton & Beckett reticle are standard.

Objective Changer

The smooth-operating, ball bearing mounted, quadruple nosepiece provides effortless objective changes.

Objectives

Meiji Techno offers an assortment of U. Planachromat Phase and S. Planachromat Polarizing Infinity Corrected objectives.

Stage

Ceramic coated 360 degree rotatable fully indexed stage with vernier and stage clips.

Condenser

Strain free Abbe condenser, N.A. 1.25 with centerable annuli for 10X, 20X, 40X phase or 10X, 20X, 40X dispersion staining objectives in sliding mount, with iris diaphragm and dovetail mount.

Illumination

Powerful 30 watt transmitted light Koehler halogen illumination provides enhanced image quality and brightness for the observation of specimens.

Accessories

All MT6800 Series models come with a first order red compensating plate (also called Gypsum or Sensitive Tint Plate), an analyzer in sliding mount, Bertrand lens, Blue Clear and Green Interference filters, Centering Telescope, and Stage Micrometer.

Photomicrography

Meiji Techno offers a broad range of digital video cameras like the CC21000 1.4MP CCD camera, which offers a cost-effective, versatile solution for asbestos analysis professionals. With the included software, one can preview and capture still shots and video to a PC or Mac with USB port.

Product Variants

Model	Head	Eyepieces	Objectives	Stage	Condenser	Illumination
MT6820	Binocular	(1) KHW10XCP Focusing with guide pin and crossline reticle, (1) KHW 10X, F.N. 20 O.D. 23.2mm	DIN Strain Free Plan 10x, 20x, & 40x, & 10x Dispersion Staining, & U. Plan 40x Phase	Rotatable with 360 degree graduations and vernier	Strain Free Abbe N.A. 1.25 w/ slider for dispersion staining and phase objectives	Transmitted light Koehler Illuminator 6V 30W halogen auto voltage sensing with intensity control.
ML6830	Trinocular	(1) KHW10XCP Focusing with guide pin and crossline reticle, (1) KHW 10X, F.N. 20 O.D. 23.2mm	DIN Strain Free Plan 10x, 20x, & 40x, & 10x Dispersion Staining, & U. Plan 40x Phase	Rotatable with 360 degree graduations and vernier	Strain Free Abbe N.A. 1.25 w/ slider for dispersion staining and phase objectives	Transmitted light Koehler Illuminator 6V 30W halogen auto voltage sensing with intensity control.

MT6500 Series Components and Accessories

Product Code	Description
Viewing Heads
MA952	Binocular head – Siedentopf type, inclined at 30 degrees with reticle angle compensation, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube. (23.2.0 mm I.D. eyetube). (Included in models MT6820)
MA953	Trinocular head – Siedentopf type, inclined at 30 degrees with reticle angle compensation, I.P. adjustment 53mm to 75mm, graduated diopter on left eyetube. (23.2.0 mm I.D. eyetube). (Included in models MT6830)
Eyepieces
MA407CP	KHW-10X focusing eyepiece with cross-line and guide pin (each) (21mm reticle mount) (Tube O.D. 23.2mm) (Included in MT6820 and MT6830)
MA407	KHW-10X Compensating eyepiece, F.N. 20 (each) (Tube O.D. 23.2mm) (Included in MT6820 and MT6830)
MA407/W	KHW 10X Compensating Focusing eyepiece with Walton & Beckett reticle, Field No. 20 (Eye-tube O.D. 23.2mm) (each) (Included in MT6820 and MT6830)
Eyepiece Micrometer
MA254/05	Walton & Beckett reticle, 21mm diameter (included)
U. Plan Phase Objectives
MA839	U.Plan Phase Contrast Objective 10X, N.A. 0.25, W.D. 10.67 mm , F.N. 24 (optional)
MA841	U. Plan Phase Contrast Objective 40X, N.A. 0.65, W.D. 0.5 mm , F.N. 24 (included)
Semi Planachromat POL Objectives for Transmitted Light Work
MA935	Strain free Plan objective 4X/N.A.0.10, W.D. 15.3mm (optional)
MA936	Strain free Plan objective 10X/N.A.0.25, W.D. 7.3mm (included)
MA936D	Strain free Plan objective 10X/N.A.0.25, W.D. 7.3mm (Dispersion Staining Objective) (included)
MA937	Strain free Plan objective 20X/N.A.0.40, W.D. 5.0mm (included)
MA937D	Strain free Plan objective 20X/N.A.0.40, W.D. 5.0mm (Dispersion Staining Objective) (optional)
MA938	Strain free Plan objective 40XS/N.A.0.65, W.D. 0.72mm (included)
MA938D	Strain free Plan objective 40XS/N.A.0.75, W.D. 0.72mm (Dispersion Staining Objective) (optional)
MA939	Strain free Plan objective 60XS/N.A.0.85, W.D. 0.2mm (optional)
MA940	Strain free Plan objective 100XS/N.A.1.25 oil, W.D. 0.14mm (optional)
POL/Phase/Dispersion Staining Condenser
MA954/05	Strain free Abbe condenser N.A. 1.25, includes sliding mount with annulus for 10X, 20X, 40X phase or dispersion staining objectives, iris diaphragm, dovetail mount (included)
Centering Telescope
MA458	Focusing Centering Telescope, 23.2 mm O.D. (included)
Filters
MA289/05	Blue clear daylight filter, 29.8mm diameter, unmounted (Fits in filter slot below swing-out polarizer) (included)
MA759	Green interference filter 546nm, 29.8mm diameter, unmounted (Fits in filter slot below swing-out polarizer) (included)
Stage and Stage Accessories
MA299	Attachable mechanical stage for MT6800 Series (optional)
MA946	Stage Clips (2 pcs) (included)
Stage Micrometers
MA285	1mm divided into 100 units, 0.01mm (Included in models MT6820 & MT6830)
Wave Plates and Compensators
MA470/05	First order red compensating plate, c.550nm for MT6800 Series (20mm x 6mm x 80mm) (included)
MA471/05	Analyzer (Sliding type) for MT6800 Series (26mm x 6mm x 80mm) (included)
MA477/05	Bertrand lens (Sliding type) for MT6820 and MT6830 Series (20mm x 6mm x 80mm) (included)
Bulbs and Fuses
MA326	Spare bulb, 6V 30W Halogen
MA327	Spare 3A fuse
Power Cords
MA809/10	Removable AC Electric cord with plug for 115V models (Included in all 115V models)
MA809/20	Removable AC Electric cord with plug for 220V models (Included in all 220V models)
Storage
MA961	Wood Storage Cabinet (optional)
Miscellaneous
MA200	Eyeshields for MA407 KHW10X eyepiece (each)
MA701	Dust cover for MT6800 Series (included)
MA905	Interference Color Chart (optional)
