Product Description

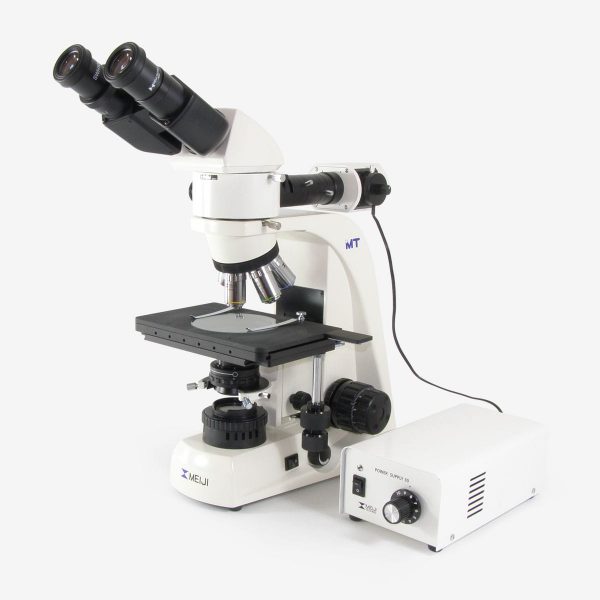

Meiji Techno’s new upright incident and transmitted light brightfield metallurgical microscope line is the new and cost-effective MT8000 Series. The MT8000 Series employs all new and improved Plan Episcopic optical system.

Meiji Techno’s ICOS™ (Infinity Corrected Optical System) makes the observation and evaluation of metallurgical specimens fast and easy while delivering an excellent cost-to-performance ratio.

• Computer Aided Design
• Ergonomically positioned controls
• Comfortable Siedentopf viewing head
• 30W Vertical Koehler Illuminator with auto sensing power supply
• 30W Transmitted Koehler Illuminator with auto voltage sensing power supply
• Brightfield Reflected Light and Brightfield Transmitted light observation modes
• Optional Ergonomic binocular viewing head available

Viewing Heads

Model MA815 is the Siedentopf-type binocular head and Model MA816 is the trinocular head for camera integration. Each head has the eyetubes inclined at 30° with the left eyetube having graduated diopter settings. The interpupillary distance is adjustable between 53mm – 75mm. An 80/20 beamsplitter for the trinocular tube can be engaged for photo work. The optional Ergonomic Viewing Head has the inclination adjustable from 10 to 50 degrees to fit any size user.

Eyepieces

10X Super Widefield High Eyepoint eyepieces F.N.22 are standard, and 15X and 20X eyepieces are available as an option. A Super Widefield High Eyepoint 10X focusable eyepiece that accepts 25mm reticules is also available.

Objective Changer

The smooth-operating, ball bearing mounted, quadtuple nosepiece provides effortless objective changes.

Objectives

Meiji Techno offers an assortment of Plan Epi Infinity Corrected objectives for Brightfield work.

Stage

Ceramic coated left or right-handed, flat top stage measures 191mm x 126mm with x-y travel: 100mm(X) x 100mm(Y). Ergonomically positioned coaxial drop down controls.

Illumination

Powerful 30 watt halogen illumination provides enhanced image quality and brightness for the observation of metallurgical specimens.

MT8000 Series Models

Model	Head	Illumination	Eyepieces	Objectives	Stage
MT8000	Binocular	30W Vertical Koehler + 30W Transmitted Koehler	SWH10x FN22	Plan Epi 5x, 10x, 20x, 50x	Ceramic Coated Fixed Flat-top left or right-handed controls
MT8100	Trinocular	30W Vertical Koehler + 30W Transmitted Koehler	SWH10x FN22	Plan Epi 5x, 10x, 20x, 50x	Ceramic Coated Fixed Flat-top left or right-handed controls

MT8000 Series Components and Accessories

Product Code	Description
Viewing Heads
MA815	Siedentopf type binocular head. 30 degree inclination, 30.0mm ø eyetubes. (MT6200H)
MA816	Siedentopf type trinocular head. 30 degree inclination, 30.0mm ø eyetubes. (MT6300H)
MA957	Siedentopf Ergonomic binocular head. 10 – 50 degree adjustable inclination, 30.0mm ø eyetubes. (optional)
Eyepieces
MA817	SWH10X Super Widefield High Eyepoint eyepiece 30.0mm ø, FN22 (standard) (accepts 25mm reticle)
MA818	SWH15X Super Widefield High Eyepoint eyepiece 30.0mm ø, FN16 (optional) (accepts 19mm reticle)
MA819	SWH20X Super Widefield High Eyepoint eyepiece 30.0mm ø, FN12 (optional) (accepts 19mm reticle)
MA859	SWH10X-F Super Widefield High Eyepoint focusing 30.0mm ø, FN22 (optional) (accepts 25mm reticle)
Plan Epi Brightfield Objectives – Infinity Corrected – F = 200mm
MA870	Plan Epi 5X objective, NA: 0.10, Working Distance = 20.0mm (included)
MA871	Plan Epi 10X, objective, NA: 0.25, Working Distance = 7.48mm (included)
MA872	Plan Epi 20X, objective, NA: 0.40, Working Distance = 5.2mm (included)
MA873	Plan Epi 50X, objective, NA: 0.75, Working Distance = 0.38mm (included)
MA874	Plan Epi 100X, objective, NA: 0.90, Working Distance = 0.37mm (optional)
Filters
MA497	Polarizing filter, 20 mm in-mount (included)
MA475/05	Blue clear filter, LB100, 20mm in-mount (included)
MA476	Green clear filter, clear, 20mm in-mount (included)
MA774	ND50 Neutral density filter 20mm in-mount (transmission: 50%) (included)
Misc. Parts & Accessories
MA809/10	Replacement 115V AC Power cord with plug (USA)
MA809/20	Replacement 220V AC Power cord with plug (Eurocord)
MA809/30	Replacement 240V AC Power cord with plug (UK)
MA958	Photo/Video attachment with 80/20 beamsplitter, fits MA957 only.
MA711	Dust Cover for MT7000 & MT8000 Series Models (included)
MA927	Vertical Koehler Illuminator 6V 30W halogen (included)
MA927/05	Power Supply for MA927, 100V – 240V (included)
MA326	Spare bulb for halogen illuminator, 6V, 30W
MA327	Spare fuse for halogen illuminator, 3A
MA906	Eyeshield (ea) for MA817 10x eyepieces (pair included)
