Microtec

Manufacturer

Microtec

Model

HM-2 Series

Style

Binocular

Principle Use

For looking at various samples at low magnification typically between 10X-40X

Price

From: £240

Product Description

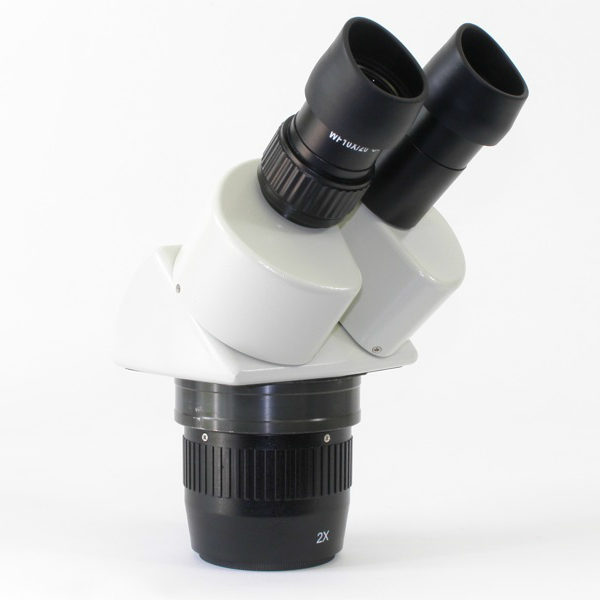

The Microtec HM-2 is an economically priced stereo microscope. The objective turret contains two pairs of objectives and the magnification is changed by rotating the turret.

There are three versions available with 1x/2x, 1x/3x and 2x/4x objectives. These microscopes provide the following magnifications and fields with the wide-field 10x eyepieces.

15x and 20x eyepieces are also available as an optional extra.

Product Variant

Product Description
HM-2A

Stereo microscope 10x/20x includes 10x eyepieces

HM-2B

Stereo microscope 10x/30x includes 10x eyepieces

HM-2C

Stereo microscope 20x/40x includes 10x eyepieces

Turrent Details

Product: Turret Objectives: Total Magnification & FOV with 10x Eyepieces: Working Distance:
HM-2A 1x / 2x 10x & 20x 20mm & 10mm 100mm
HM-2B 1x / 3x 10x & 30x 20mm & 6.7mm 100mm
HM-2C 2x / 4x 20x & 40x 10mm & 5mm 100mm

This microscope is sold as a modular system.

Eyepieces

Product Description
HM-310FG

Focusing 10x eyepiece with scale graticule

HM-315E

Pair of 15x/15 eyepieces

HM-320E

Pair of 20x/10 eyepieces

Stands

Product Description
HM-3L2

Long arm stand (requires focusing unit HM-3F OR HM-3FF)

HM-3L4N

LED illuminated stand for reflected and transmitted light includes focusing unit

HM-3P

Plain stand including focusing unit

HM-3P220-LED

Plain stand complete with incident dual arm LED lighting

Illumination

Product Description
HM-3RL

Ring – required for fitting ring light when no auxiliary objective fitted
