Product Description

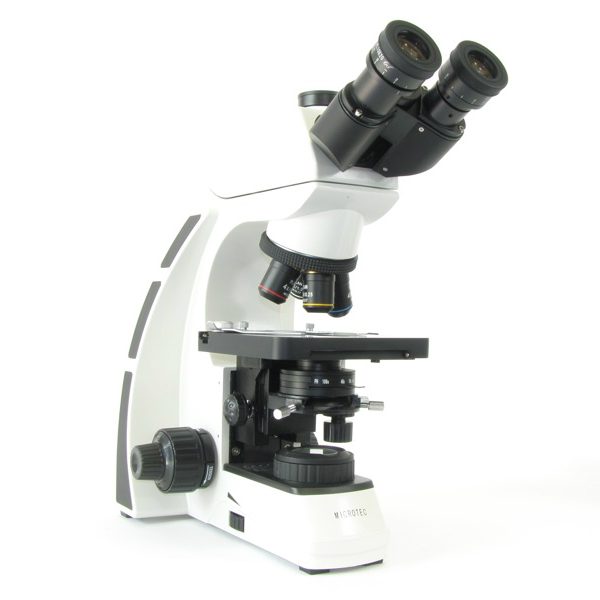

The Microtec LM-2 biological microscope has flat field infinity corrected Planchromat objectives, providing wide-field (FN20) crisp images. The LM-2 is available with either binocular
viewing head or with a binocular head and phototube (as illustrated above).
The Kohler illumination system has a field iris and a focusing and centering condenser. The LED illumination provides ideal illumination without the necessity to ever replace the lamps.
Phase contrast objectives are also available for this microscope. The standard additional items for phase contrast include 10x and 40x phase objectives and a slider containing the
condenser phase rings. 20x and 100x phase objectives are also available.
The LM-2 is designed for maximum comfort when using for long periods. The ergonomic design ensures that the focusing controls and mechanical stage control are readily to hand.
Brightfield Microscope
| LM-2B |
- Binocular microscope with coarse and fine focusing
- Pair of wide-field 10x/FN20 eyepieces
- Quintuple nosepiece
Objectives:
- Planachromat 4x/0.10
- Planachromat 10x/0.25
- Planachromat 40x/0.65
- Planachromat 100x/1.25 Oil
- Built-in drop control mechanical stage 76x50mm movement
- Focusing NA 1.25 condenser
- Built-in regulating Kohler LED Illumination
|
| LM-2TR |
Microscope as above, includes photo tube with fixed
80% visual / 20% photo
|
Extra Brightfield Objectives
| LM-2020 |
Planachromat 20x/0.40
|
| LM-2050 |
Planachromat 50x/0.90 oil
|
| LM-2060 |
Planachromat 60x/0.85
|
Phase Contrast
| LM-2PHT |
Centering phase telescope
|
| LM-2PHX |
- Planachromat 20x/0.40 Phase
- Planachromat 100x/1.25 Oil Phase
- Phase slider for 20x & 100x
|
| LM-2PHY |
- Planachromat 10x/0.25 Phase
- Planachromat 40x/0.65 Phase
- Phase slider for 10x & 40x
|
Measuring
| LM-E10FG |
Wide-field focusing eyepiece 10x/FN 20
With scale graticule 10:100
|
| PM-STG |
Calibrating stage micrometer 1mm in 100 parts
|
Polarising and Darkfield
| LM-DF |
Dark field slider
For objectives: 4x, 10x, 20x, 40x
|
| LM-POL |
Polariser and analyser
|
Camera Adapters
| LM-TV1 |
C-mount adapter 1x
|
| LM-TV2 |
C-mount adapter 0.5x
|
| LM-TV3 |
C-mount adapter 0.3x
|
